Journal I: FontForge & Error Recovery

Braden Currah - 11/10/2025

FontForge is an open-source application with a comprehensive set of tools for creating and editing fonts. It is a complex piece of software with many legacy features, and as is common with complex software there are many opportunities to make mistakes. FontForge has a special peculiarity that adds to this, but in order to arrive there we first need to open it up.

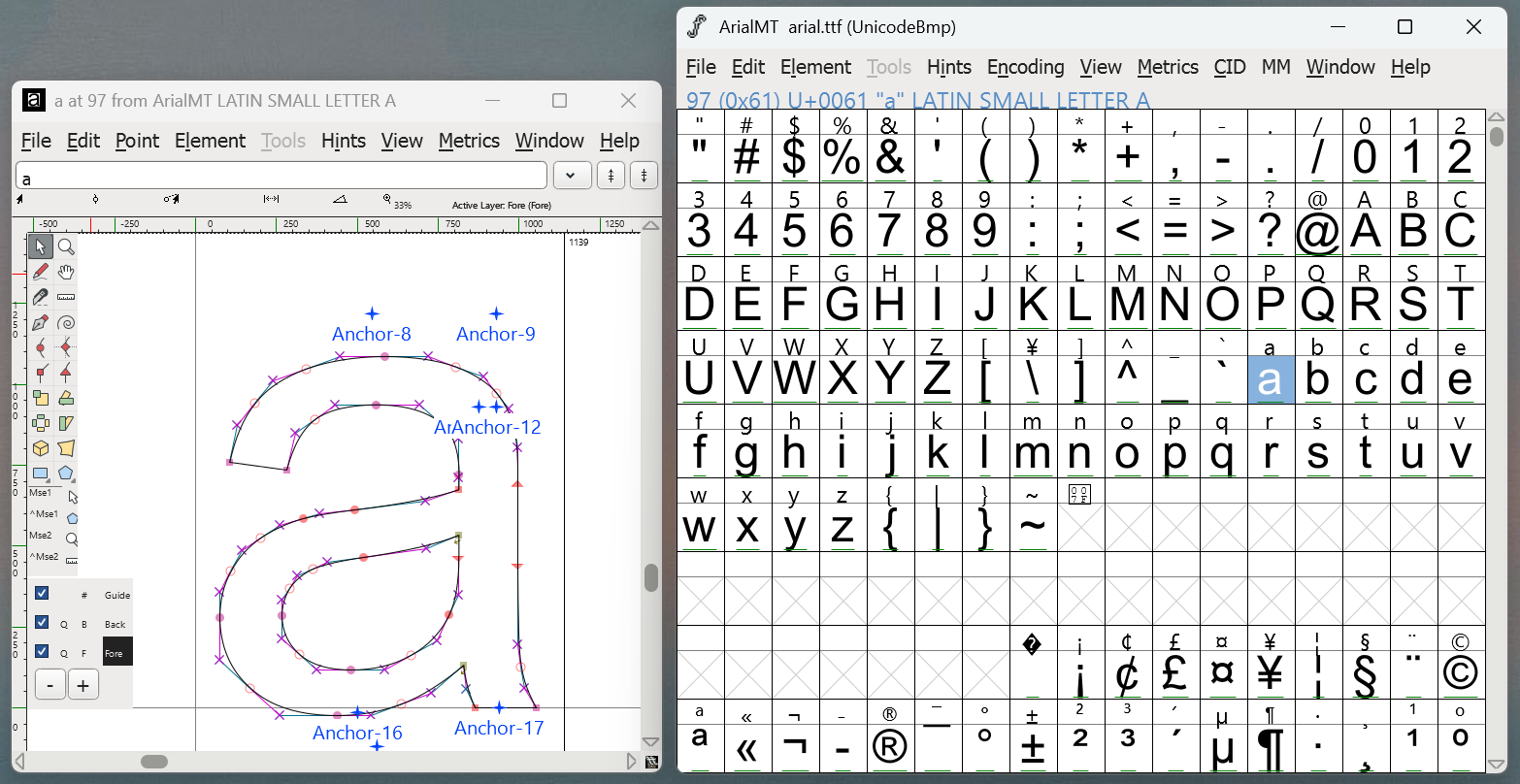

The two primary windows in the FontForge interface

This is a daunting first impression for a piece of software- the design of which warrants a journal of its own- but fortunately for this journal we are only concerned with the panel on the right. That panel is the Font view, which displays all of the glyphs (the letters and symbols) contained in our font. These glyphs are sorted by their Unicode value- that is, the order (or encoding) that is standard for the digital Latin alphabet.

We are ready for the thing that makes FontForge so peculiar: undo and redo operations are stored per-glyph, rather than a global operation that affects the entire application. This subverts a usual convention typically found in software, but proves to be incredibly convenient. This is because working on a font typically involves a lot of back-and-forth between glyphs, and so correcting a mistake made in one glyph does not necessitate reversing progress made on another. There is one downside to this structure, which we will see in a moment.

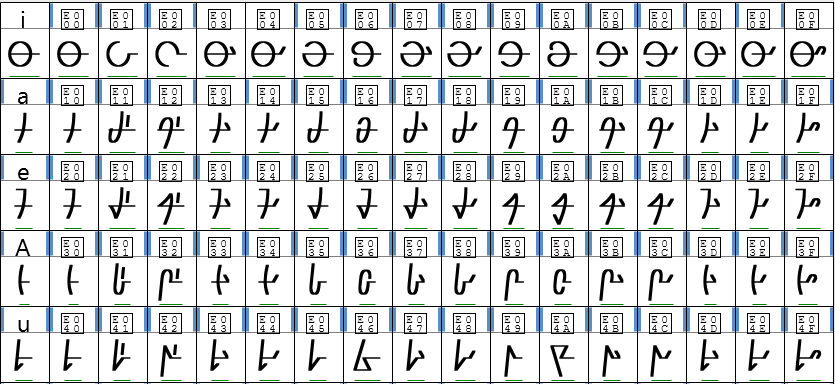

A set of custom glyphs in the Font view

In this particular instance I had been using FontForge to create a font for a fictional language, a portion of which is pictured above. This is notable because, unlike a regular Latin font, it does not follow a standard encoding. Instead, this font is organized into rows of 16 related glyphs, which I relied on heavily while editing and configuring the text.

There are about 150 symbols in this language, including a host of numbers, ligatures, and diacritics. This is why when I noticed the menu option Display by Groups, which allows glyphs to be selectively hidden, I was eager to take advantage.

The first step in using this feature was to sort the glyphs into groups, which can be done interactively by selecting the symbols from the Font view. This efficiently used existing interactions in the interface, and prevented me from having to type every glyph name by hand.

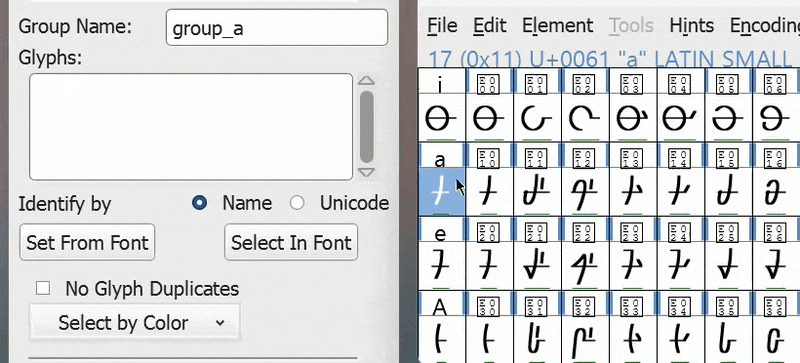

Drag-selecting glyphs and adding them to a group

Once the groups are defined, using the tool is simply a matter of choosing one or more and pressing OK.

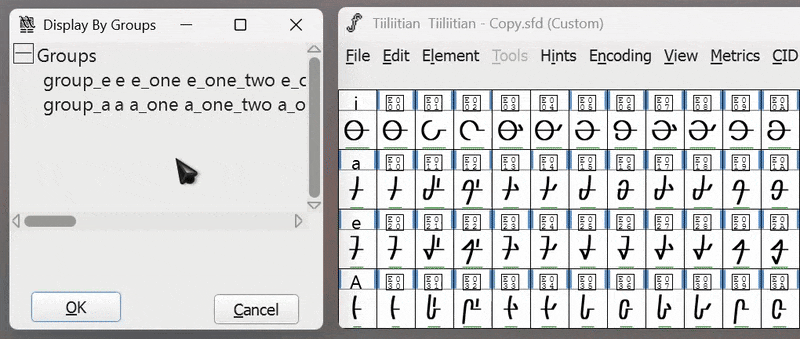

Hiding all glyphs except for the selected group

This is great! I can focus on a single set of glyphs at a time. But later, how do I unhide them? Here is our first struggle. I can select other groups to show them, but I only made two. What about the rest? Scouring the menus did not reveal any affordances that would indicate a way to reverse this. The documentation, which describes the feature in detail, omits this information as well.

After some experimentation, I eventually found a solution. It involves the following steps:

  1. Create a new group, not of glyphs, but of a color. In this case I guessed- because all glyphs are black and white- the default color.
  2. In Display by Groups, select the new ‘color’ group, and press OK.

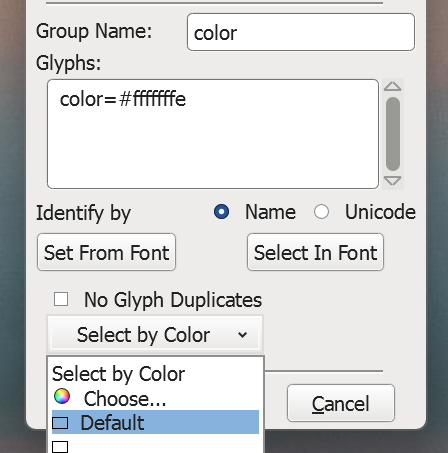

Creating a group based on color

Clearly, this is not an ideal interaction. I only found a solution by chance, and it is one that is far too roundabout to be the intended use case. At least we managed to avoid disaster and reveal all of the glyphs once again.

A set of custom glyphs in the Font view, but different

Hold on, something is not correct here. It was subtle, but the glyphs are definitely not in the same order they were in previously. In fact, the entire font- all 150 glyphs- had been rearranged into the Latin encoding. Which, as we saw, is not an ideal order for this entirely non-Latin language.

This was strange, but I was not too concerned. After all, I could simply undo the changes I had made to the font up until this point, right? Here is the second and critical problem. FontForge uses a per-glyph undo operation, but the order of the glyphs- and for that matter any font-wide configuration- does not belong to any particular glyph. In other words, any global change is entirely destructive. There is no error recovery in place for these operations.

The effort required to move every glyph back into place, and to fix some features of the font that were broken by this rearrangement, seemed greater than the effort required to restart from scratch. So, the file was effectively destroyed by this seemingly innocent sequence of events.

Later work on this language would find the FontForge project growing increasingly unstable and, on occasion, crashing in such a way that the project file was deleted outright. Creating backups became a routine. This experience highlighted the necessity for proper error prevention and recovery features, especially when the error can be catastrophic and cost the user many hours of work.
